Product features:

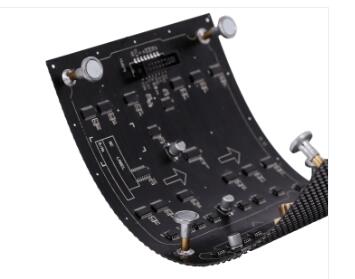

1, module, soft, strange shape, convenient installation. The cylindrical screen brush with high performance, can be lifting, loading, mounting, etc.
2, module mask using silica gel, smooth without off color.
3, strong module, softness, need what kind of model can be assembled into what kind of modelling; Such as module and can be fixed at the bottom of the frame (or box) made into various shapes such as cylindrical, s-shaped, wavy.
4, flexible modules can also make the corresponding box body, make the screen surface is smooth and beautiful; Body signal and power cord with rapid joint connection, convenient installation, simple operation; And can be used together with the professional audio and video processing system.
Number | Category | Brightness | View (horizontal / vertical) | Wavelength |
Test Conditions |
1 | RED LED | 180~220MCD | 120o±5o | 620-625nm | 25℃,20mA |
2 | GREEN LED | 650~750MCD | 120o±5o | 520-525nm | 25℃,20mA |
3 | BLUE LED | 90~110MCD | 120o±5o | 465-470nm | 25℃,20mA |
LED chip |
Number | LED constitute | Type |
1 | SMD | SMD 3528 |
Specifications |
1 | Point spacing | 10mm |
2 | Drive mode | Constant current 1/8 sweep |
3 | Driver IC | MBI5024 |
4 | Module resolution | W32×H16 |
5 | Module pixels | 512 dots |
6 | Module size | 320*160mm |
7 | Box size (width x height) | 640*640mm |
8 | Box resolution | 64dots*64dots |
9 | Number of modules | 8pcs |
10 | Pixel density | 10,000 dots/㎡ |
11 | Material | Iron box |
12 | Box weight | 8.8KG |
13 | Brightness | 850-1000cd/㎡ |
14 | Perspective | Horizontal 140 °, vertical 140 ° |
15 | Minimum viewing distance | ≥10m |
16 | Gray scale | 16bit |
17 | Colour | 281 Trillion |
18 | Refresh rate | 1920HZ |
19 | Change frame frequency | 60fps |
20 | Input voltage | AC220V/50Hz or AC110V/60Hz |
21 | Power consumption (maximum / average) | 280/100 W/㎡ |
22 | Screen weight | 24kg/㎡ |
23 | Mean time between failures | >10,000 h |
24 | Service life | ≥100,000 h |
25 | IP protection class (front / rear) | IP65/IP43 |
26 | Temperature | ﹣20℃～+60℃or﹣40℃～+60℃ |
27 | Humidity | 10%-90%RH |
28 | Operating system | Colorlight or Linsn |
29 | Source code compatibility (using video processor) | AV,DVI,HDMI,SDI,S-Video,YPbPr. |
